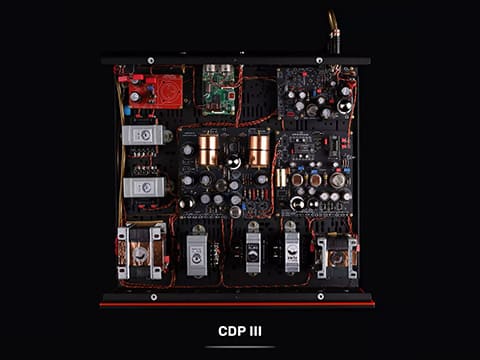

SW1X CDP III SPX Complete DAC & Streamer Player (DAC III + VDT I)

FEATURES:

SW1X Audio Design™ CDP III Performance Level 3

Complete DAC Player & Streamer

CDP III = DAC III + VDT I/2 Transport & Streamer

CDP is short for Complete DAC Player. Similar to a CD Player, CDP is a SPX version of a SW1X DAC with a VDT Digital Player/Streamer housed in one chassis.

This is a harmonically matched solution for those who are looking to miximise the musical and analogue characteristics of SW1X digital source without the hassle of mismatch stemming from multiple chassis products.

Everything is designed to be UPnP & DLNA ready- just connect & discover the device on your network & control the playback of your music media via touch screen or another device.

SW1X Audio Design™ CDP III Features:

DAC III Section

• Pure NOS (Non oversampling – zero digital domain filtering) Design
• Selected and Harmonically Matched Component & Material Quality
• Anode Follower, Zero Negative Feedback, Single Ended, Class A, RC (resistive loaded, capacitive de-coupled) Valve Amplification Topology
• 6N6P Double Triode Valve Output Stage
• Directly Heated 5Y3 (SPX version) Valve rectified CLC (choke filtered) Power Supply
• Active I/V conversion via a single specially selected transistor (with less than 10 Ohm input impedance) with the shortest signal path directly connected to the tube grid
• Circuit is wired with of a specially selected copper (single strand or Litz)
• Discrete Transistor Shunt Voltage Regulated Power Supplies for the TDA1541, SPDIF receiver and active I/V conversion
• 3 (4 x on VSB version) x EI core Mains Transformers & 2 x Chokes

Specially Selected and Harmonically Matched Component & Material Quality

• M6 grain orient EI core Mains Transformers & Chokes (SPX version)
• Black Gate de-coupling Capacitors for TDA1541 DAC (SPX version)
• AN Copper Foil Signal Output de-coupling Capacitors
• Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors of various geometry (single strand or Litz)
• AB 2W non-magnetic Carbon film Resistors (SPX version)

Tube Compliment: 1 x 6X5 (5Y3 SPX Version), 1 x 6N6P, 1 x E180F, 1 x EAA91

VDT Digital Transport Section

• Discrete Transistor Master Clock
• Valve Output Stage for the SPDIF signal Output
• Discrete & independent Linear Power Supplies for CPU, Master Clock & Output Stages

Specially Selected and Harmonically Matched Component & Material Quality

• Minimum amount of SMD components
• All Capacitors, Resistors, Transfromers & Chokes are of Highest Quality as used in our DACs and Amplifiers
• SW1X Audio Design™ M6 grain orient EI core Mains Transformers & Chokes (SHiB double C-core available as an option)
• Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors of various geometry (single strand or Litz)
• Copper Foil in Oil Signal de-coupling Capacitors
• AB 2W non-magnetic Carbon film Resistors

Power Supply

• Powered by 2 x audio signal grade M6 EI core Mains Transformers: 1 x Master Clock, 1 x SPDIF Output and 1 x for the CPU
• Valve rectified Power Supply for the Master Clock
• Valve rectified and Choke filtred Power Supply for the SPDIF signal Output Valve Output Stage
• Discrete Transistor, Shunt Voltage Regulated Low Voltage Power Supplies

Audio Playback

• Coaxial SPDIF Audio Output, PCM up to 192 kHz 24/32 bit
• AES/EBU Audio Output, PCM up to 192 kHz 24/32 bit
• USB Audio Output, PCM up to 768 kHz 32 bit

Inputs/Outputs

• 1 x Valve amplified SPDIF
• 1 x AES/EBU
• 1 x I2S
• 3 x USB 2.0
• 1 x RJ45 Gigabit Eithernet LAN
• 1 x HDMI (optional)

Operation System

• Audio playback optimised Linux or ArchLinux based OS such as Volumio (standard) or similar
• Supported Formats WAV, FLAC, DSD, Alac, Aac, Vorbis, Cue, Mp3 and others
• UPNP DLNA Renderer with Open Home support
• Supported Services Airplay via Shairport Sync, Spotify & Spotify Connect, TIDAL & TIDAL Connect, QOBUZ

User Control Interface

• Web Browser or App Based

Tube Compliment:  Output Stage 1 x E180F

.
